The purpose of this integration to synchronise your client list in Xero Practice Manager with AccountKit and keep them in sync so you're not maintaining multiple client lists.
Before you start...
Before you make a start, there are a couple things you need to do and note:
- The initial connection should be initially completed by a user with Administrator Access in XPM to ensure there are sufficient rights for AccountKit to write back to XPM.
Integration Limitations
We love all things Xero as much as the next person, but there are some limitations with the XPM API unfortunately which you need to be aware of so as to not be taken by surprise when something doesn't synchronise quite the way you would expect. In most instances a change in XPM will be picked by AccountKit and vice versa, but here's what we've come across so far.
Information that isn't picked up in XPM when changed in AccountKit,
Requires a manual update also to be completed in XPM.- Creating a new group with no one within the group won't flow through.
- Setting up new business types in AccountKit will not update XPM automatically. Either enter the structure type in both XPM and AccountKit with identical details or just do it in XPM and force a full re-sync.
- Changing an entity from Prospect to Client.
- If the change is made in AccountKit, the API does NOT allow this to flow through to XPM. Thereby requiring a manual update within XPM after making the change in AccountKit.
- If the change is made in XPM, a new client ID is created resulting in a new client being created in AccountKit. The best way to manage this to change prospect to a customer in AccountKit, then update the XPM ID to match the newly created client in XPM. This way you get the full history of the client when they were still a prospect carrying through to the client record.
Client fields that have no equivalent in XPM;
At times we will add fields that have no corresponding equal in XPM - these obviously won't sync. For example:- Client description - is a field where you're able to leave a short description as to what the role each entity plays within a family group client map. There is no equivalent in XPM.
- Business name - this is linked to the Business Name register, which has no corresponding link into XPM fields.
- Client notes - These are bespoke notes that are shared amongst entities across AccountKit and have no equivalent in XPM.
-
Relationship differences - Generally speaking our relationships are identical to XPM, with the following exceptions
- Unitholder Relationship - In AccountKit you can create a unitholding relationship with applicable unit holdings and descriptor. When we sync with XPM, we create a "Beneficiary Relationship" within XPM.
- Shareholder Descriptor - this field simply enables you to name shares (such as Class A, Ordinary etc). This field does not flow back to XPM.
- Sibling Relationship - This relationship enables us to show where a client has a family relationship with another brother / sister. This relationship type is not available in XPM.
How do you use it?
To connect to Xero Practice Manager:
- First ensure that you have the appropriate user permissions within Xero Practice Manager. You need to have the authority ticked for "Authorise 3rd Party Full Access"
- Now go to the AccountKit User Menu then Practice Settings and select the "Integrations" tab.
- Hover over the logo and select the 3 dot menu with the option to connect to XPM. Press the connect button and follow the directions with logging in to Xero to authorisation the connection.
- Where you have more than one XPM authority, select the applicable XPM org and select ok

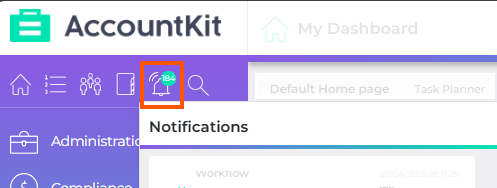

- Once you've been returned back to AccountKit and the icon has turned green, simply wait until you receive a notification in the notification strip at the top of the page identifying that the syncronisation has completed.
- Once synchronised you will be able to start using any and all of the tools with AccountKit associating any entries against the applicable clients.
i
|

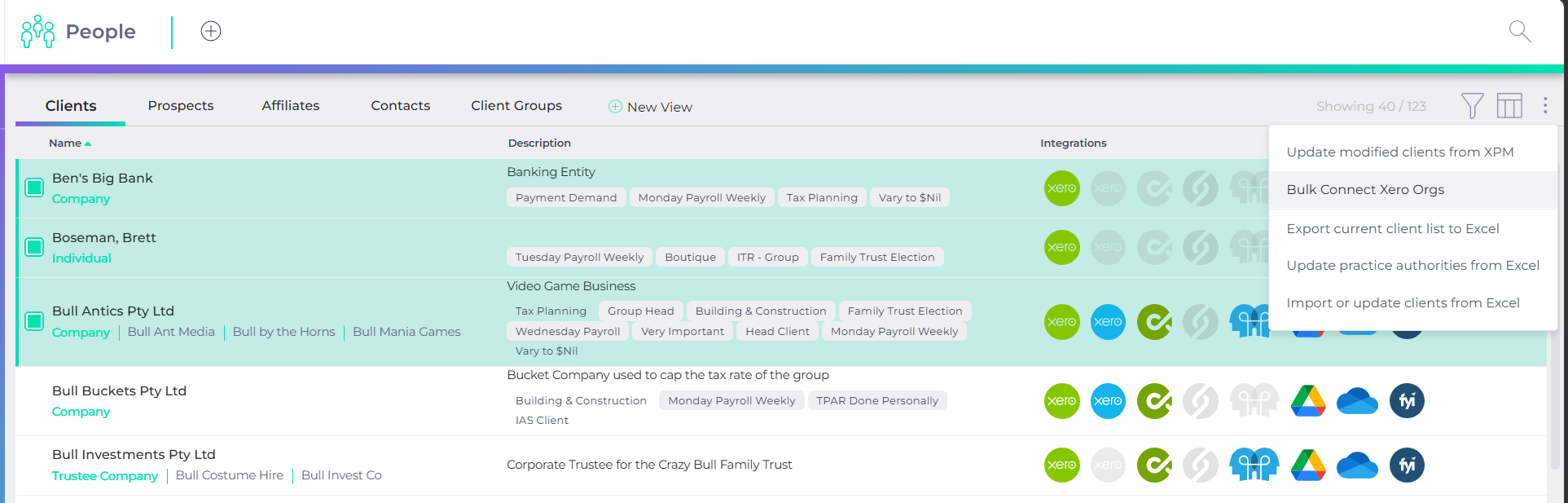

Update All - Once you've synced the first time, you can use this button to force a check of all clients within XPM compared to AccountKit. |
To disconnect Xero Practice Manager:
- Go to Practice Settings under the user menu
- Select the "Integrations" tab.
- Select the 3 dot menu
- Select "Disconnect from XPM" to disable the integration.
i
|
No data is lost when you disconnect from XPM unless you then connect to a different XPM org at which point you'll likely end up with an odd mismatch of client data. Not recommended. |
Integration Details & Options

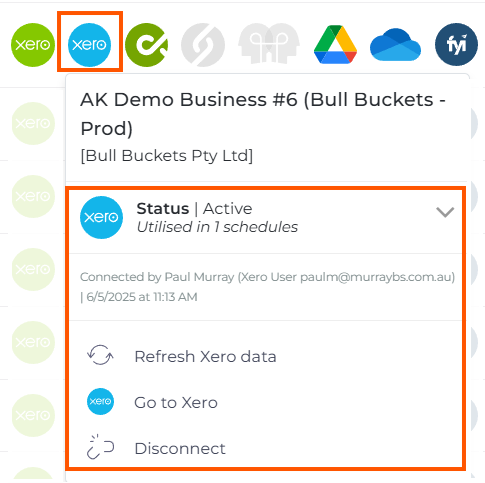

The Xero Practice Manager Icon:
Wherever you see and click the Xero Practice Manager icon, the colour will identify its status and therefore any context-sensitive options.
- Selecting a grey icon will give you the ability to connect / link a client to the integration if available.

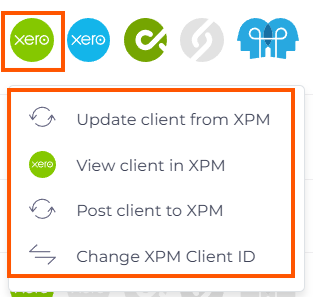

- Selecting a colour icon will give you a context sensitive menu in relation to that client and the associated connected integration.
Icons |
Menu |
Detail |
---|---|---|
|
Not Connected
|
|
Connected
|
XPM Data v's AccountKit Data - Which fields sync?
Across AccountKit and XPM there is a multitude of fields, but not all of them sync with each other. Here's a list showing which fields map to which fields in XPM, by entity type. Note that Affiliates do NOT sync in any way back to XPM.
** Things to consider
- Where a field is in XPM and not in AccountKit, most times it's because the field is NOT available via the API.
- We share a lot of fields between client and contact records, which enables us to merge duplicated contact records back to a client record.
- BUT this does mean there are times there are fields in Client and Contact records in AccountKit, that have no corresponding field to sync to in XPM. For example - A contact may have a phone number and mobile number, but if you merge that contact back to a client record, the client record will have both numbers in AccountKit, but in XPM, there will only be the phone number in the client record BUT the merged contact in XPM will get both numbers, since a single Client or Contact record can represent multiple clients / contacts in XPM.
AccountKit |
Client / Prospect |
Contact |
---|---|---|
First Name |
First Name |
|
Other Name |
Other Name |
|
Last Name |
Last Name |
|
Name |
Name |
Name |
N/A |
Title |
|
N/A |
Gender |
|
Set as primary contact |
N/A |
Set as primary Contact |
Position |
N/A |
Position |
Salutation |
N/A |
Salutation |
Addressee |
N/A |
Addressee |
Business Name |
N/A |
N/A |
Entity Type |
Business Structure |
N/A |
Date of Establishment / Birth |
Date of Birth |
N/A |
Date of Death |
N/A |
N/A |
Lodgement Due Date |
Tax Form Due Date |
N/A |
ABN |
ABN |
N/A |
TFN |
Masked to AK Full to XPM |
N/A |
ACN |
ACN |
N/A |
N/A |
Balance Date |
N/A |
N/A |
Agent |
N/A |
N/A |
Branch/CAC/ICA # |
N/A |
Director ID |
Director ID |
N/A |
Description |
N/A |
N/A |
Client Groups |
Groups |
N/A |
Client Notes |
N/A |
N/A |
Phone |
Phone |
Phone Number |
Mobile |
N/A |
Mobile |
|
|
Email Address |
Fax |
Fax |
N/A |
Skype |
N/A |
N/A |
Website |
Website |
N/A |
Street Address |
Physical Address |
N/A |
Postal Address |
Post Address |
N/A |
Partner |
Partner |
N/A |
Manager |
Manager |
|
Practice Type |
Client |
|
Practice Authorities - Tax Return |
Prepare Tax Form
|
|
Practice Authorities - Activity Statement |
Prepare Activity Statements |
|
N/A |
Activity Statements Due Date |
|
Practice Authorities - Annual Review |
N/A |
|
Practice Authorities - others to come |
N/A |
|
Contact |
Contact |
|
Contact Of |
N/A |
|
Relationships |
Relationship |
|
N/A |
Client Code |
|
N/A |
BSB Number |
|
N/A |
Account Number |
|
N/A |
Account Name |
|
N/A |
Financial Institution Name |
|
N/A |
Fee From Refund |
|
N/A |
Active ATO Client |
|
N/A |
Verified Individual |
|
N/A |
Date Verified |
|
N/A |
Verification Method |
|
N/A |
Verified by |
|
N/A |
Notes |
|
XPM & AccountKit Workflow [BETA]

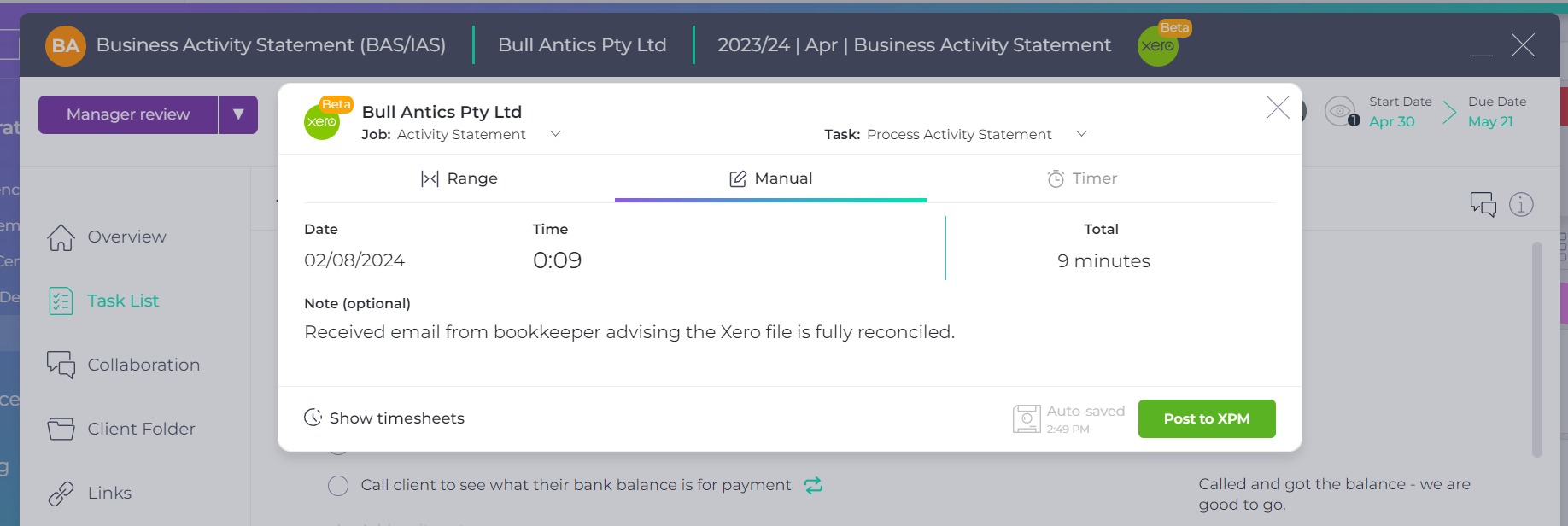

In addition to having a direct link through to and ability to update client data in XPM, where you're using AccountKit workflow you can access XPM jobs and tasks directly from the task in AccountKit and post your time directly into XPM via the API integration.
Open Beta will be available to all workflow users from the 5th August 2024.
The purpose of the link between AccountKit workflow and XPM is to allow direct access to billing, timesheet and workflow solutions between the 2 systems.
Update XPM Client ID
This item warrants a section all to itself. As mentioned above, when you merge a duplicate client in Xero HQ (eg. XPM Client and Xero Blue Client), depending on the direction you merge, this is what happens:
- A new client with identical details is created, but with a different client ID.
- The original clients' data (jobs, phone numbers etc) are merged into the newly created client and then deleted.
- What this means for any integrations is that we see that the XPM Client ID disappears, and so the client is then archived and a new client is setup. This means any history, integrations etc are left with the archived client and we now have a new version of the client missing all the normal data.
We have implemented a fix that looks for these changes and automatically updates the XPM ID of the old AccountKit client to the new XPM ID, thereby ensuring continuity with the client.

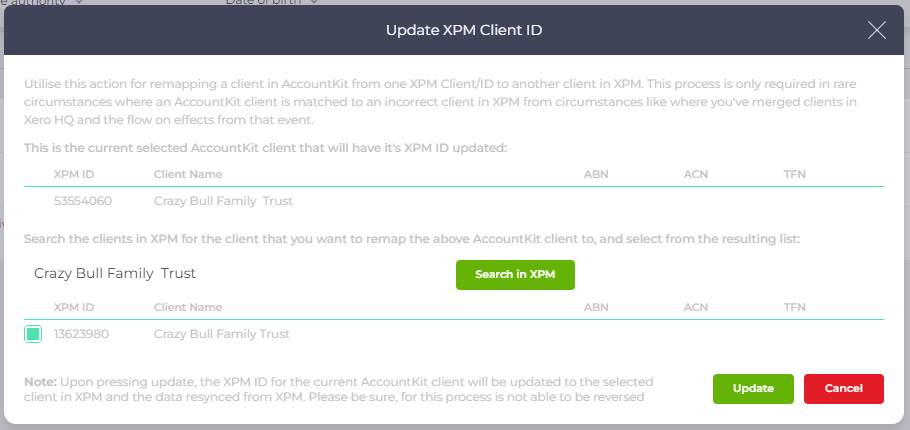

Utilise the "Update XPM Client ID" option to get rid of the duplicate and re-associate the correct client in AccountKit with the new version of the client in XPM by following these steps.
- Identify the original client that has all the data and integrations.
Here you can see the top entity has the integration and extra detail. This is the original we want to keep.
- Select the Green Xero Icon for this entity and push the "Update XPM Client ID" option
- Tick the client that you're looking to take the XPM Client ID from and press Update.
- Unarchive and then open the client and press save to finalise the relinking process.
- What it will do then is:
- Copy the XPM Client ID from the selected client (being the new version of the client in XPM)
- Update the XPM Client ID of the original version of the client with the copied ID.
- Remove the XPM Client ID and archive this new version of the client.
- You'll now have removed the duplicate client and it won't re-archive upon sync anymore.
XPM Sync Errors
On the very rare occasion a sync with Xero will fail. When it does, sometimes the messages aren't terribly useful, but we've identified those that we've come across so far. It's important that when there is a failure, make sure to manually log in to XPM and make the XPM change there also.
- 503 Service Unavailable: Back-end server is at capacity - This usually means that XPM is actually offline entirely; So you'll need to wait until it's online again before updating any changes.
-
403 Forbidden: This means that AccountKit is no longer authorised to talk to XPM. This can happen any number of the following ways, but the way to fix is simply to reconnect once again from within Practice Settings > Integrations.
- The user who established the connection has since departed, causing their access token to expire.
- Someone has disconnected the connection either in AccountKit or within XPM.
- The permissions of the user who established the connection has changed.
Related Links
Practice Settings - Integrations | Head to practice settings for the steps to enable this integration. |
Shared Elements (Eg. Action Menu) | Check out this link for various elements shared throughout the various toolsets. |
